EDGE V-GROOVE PANEL SPECIFICATION DETAILS
Manufacturer : CSR Cemintel
Product : Edge
Profile 1 : Ribbon 150mm wide vertical groove
Profile 2 : Bond 75mm wide vertical groove
Profile 3 : Oxford 150mm wide vertical groove
Profile 4 : York 300mm wide vertical groove
Profile 5 : Crown 400mm wide vertical groove
Finish : Factory preprimed
Thickness : 9mm
Sheet size : 2450mm or 2750mm or 3000mm long x 1200mm wide
Installation :
Direct fixed (with or without cavity) with tongue and groove jointing installed strictly in accordance to manufacturers specification as set out in the CSR Cemintel Edge & Simpleline Installation Guide.
>Download Installation Guide

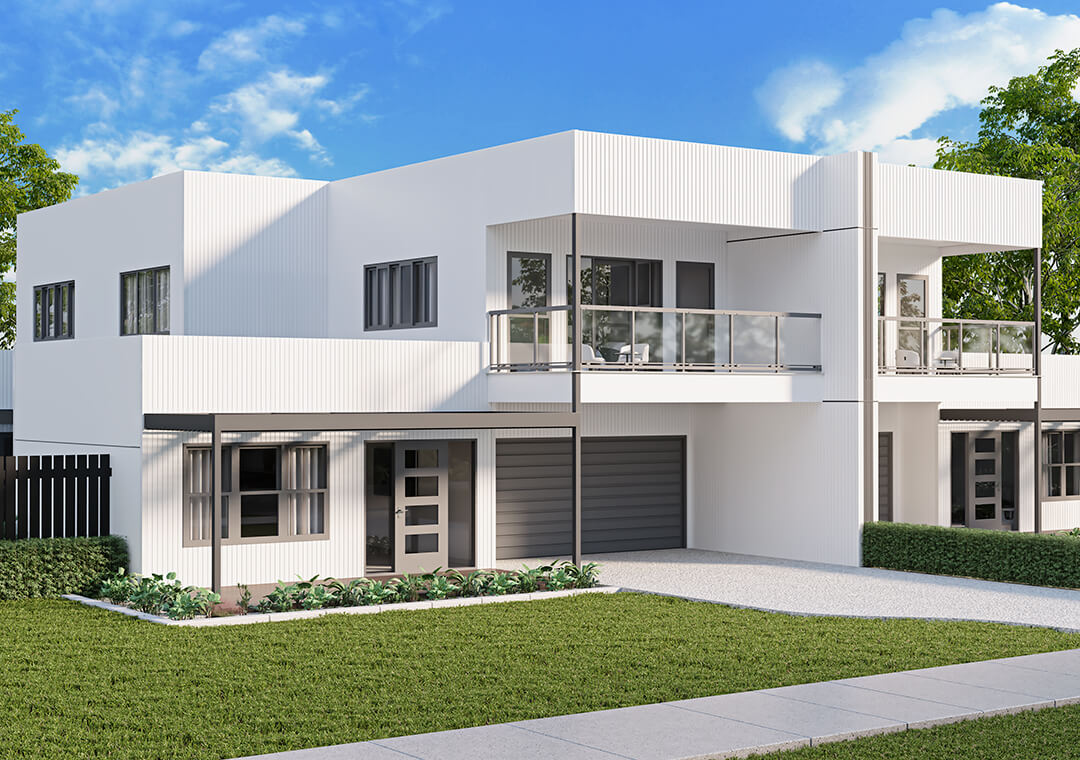

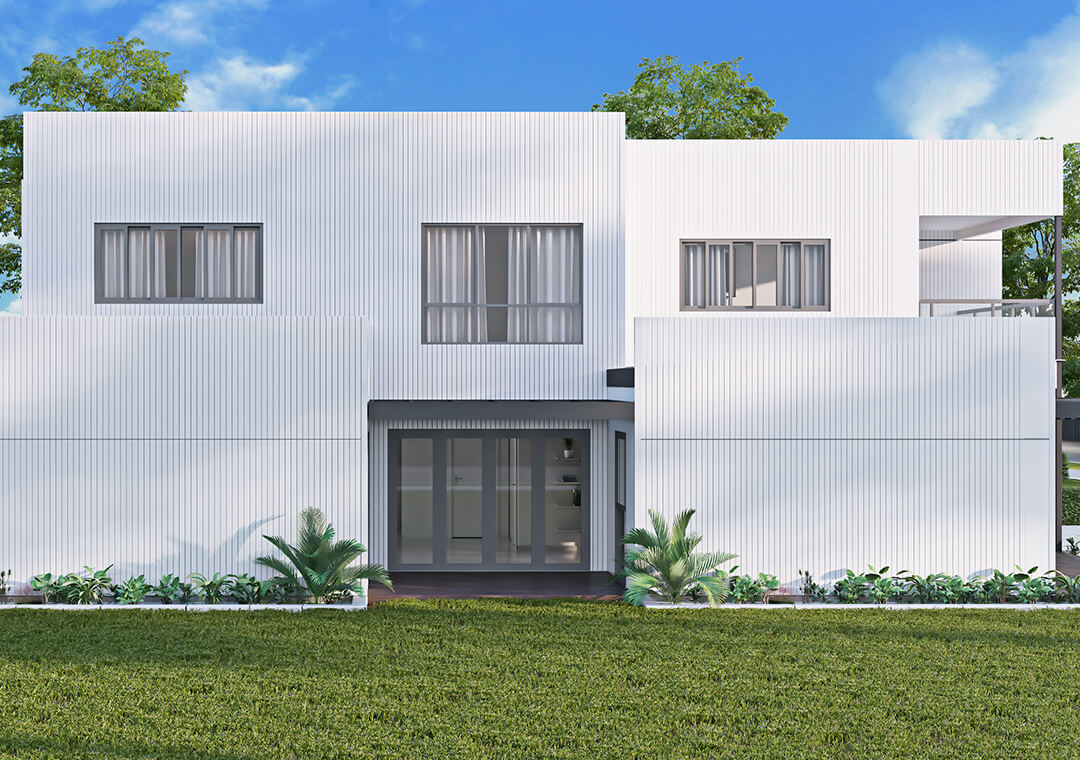

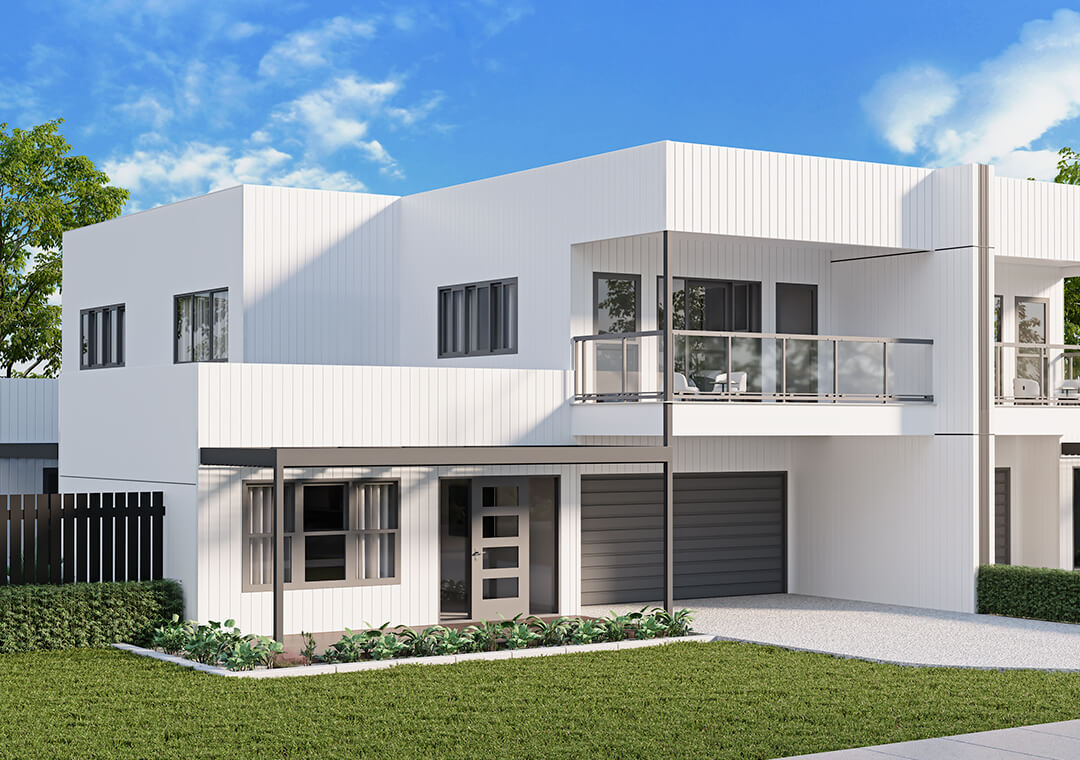

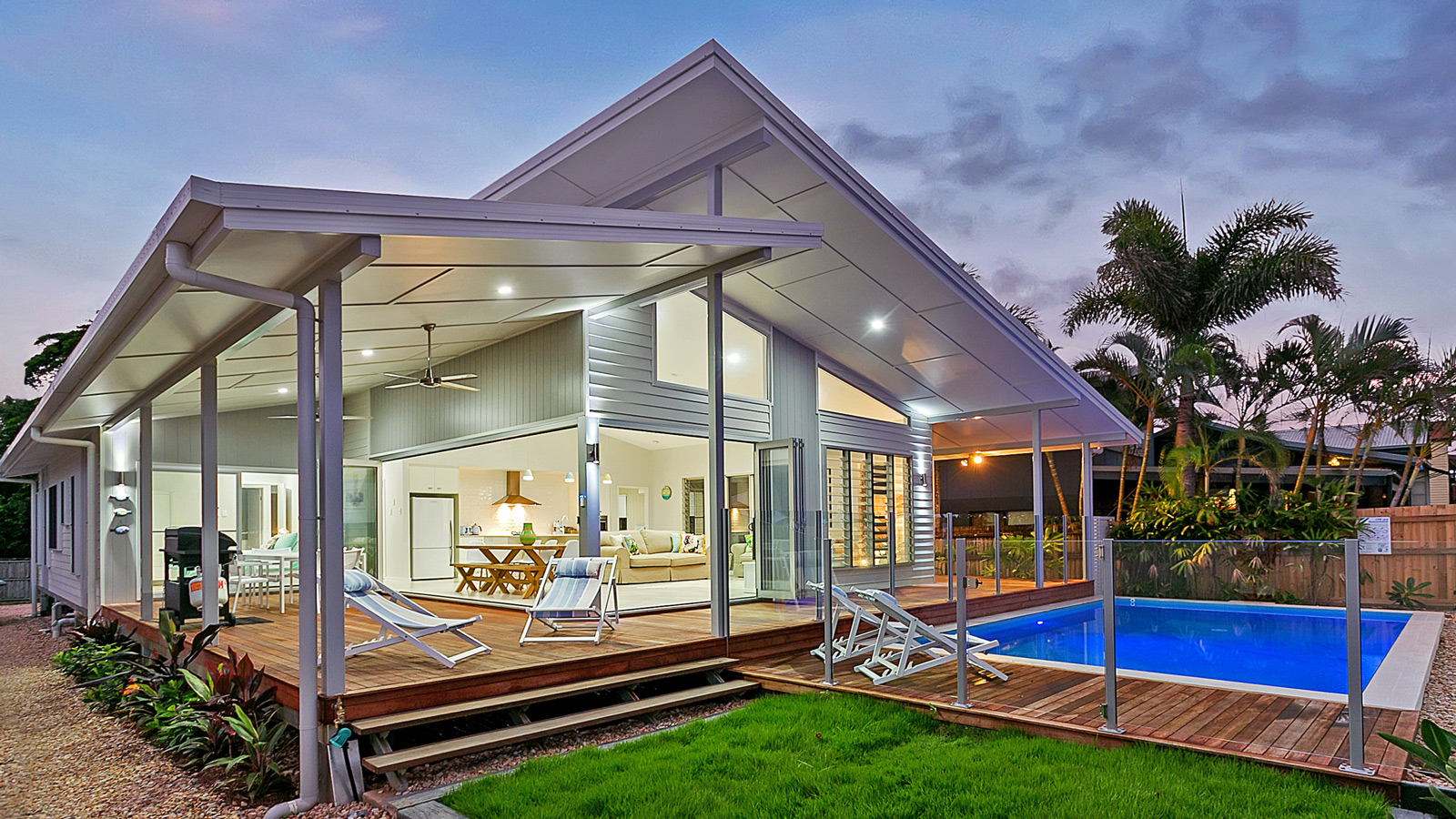

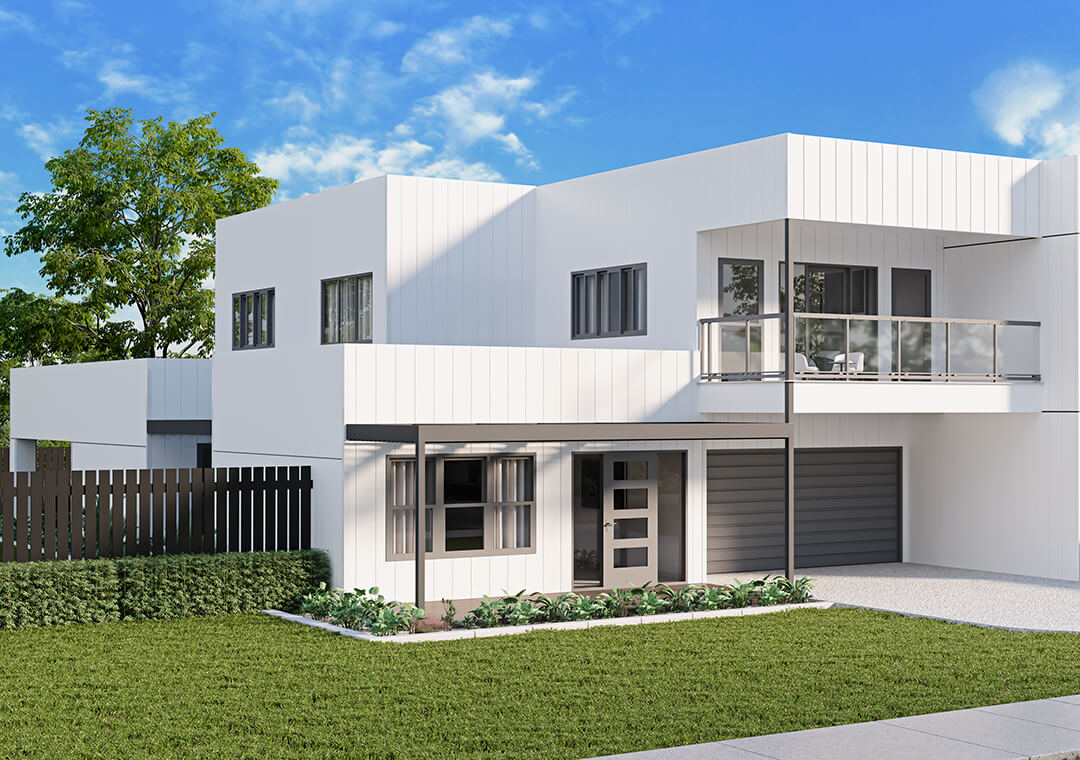

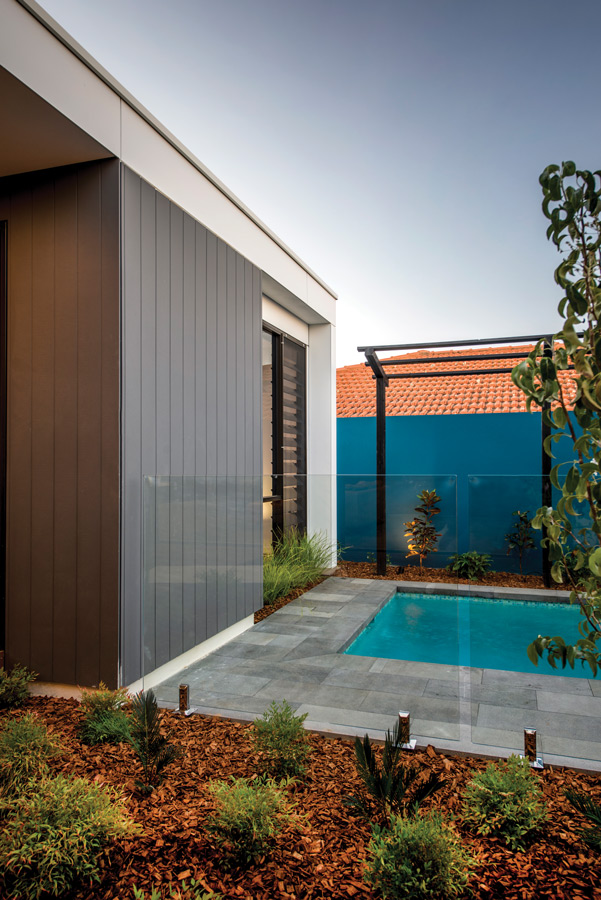

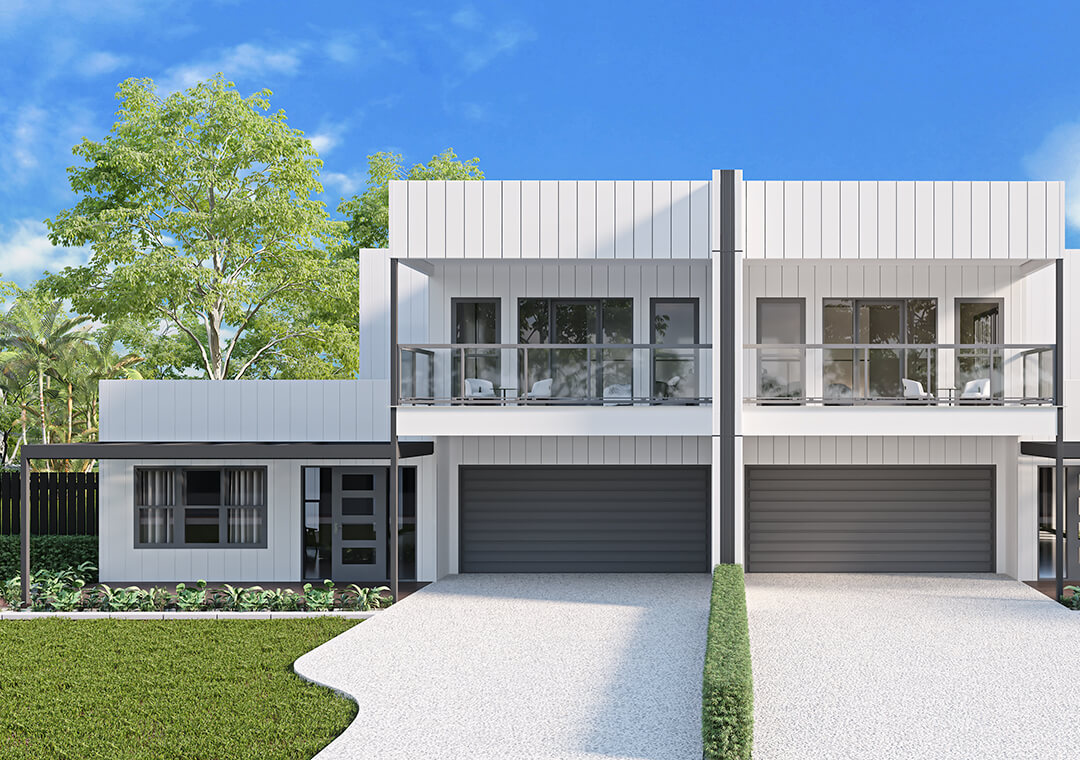

Edge Cladding is a pre-primed, vertical cladding, with sharp grooves, allowing for a creative pairing with the whole Cemintel range

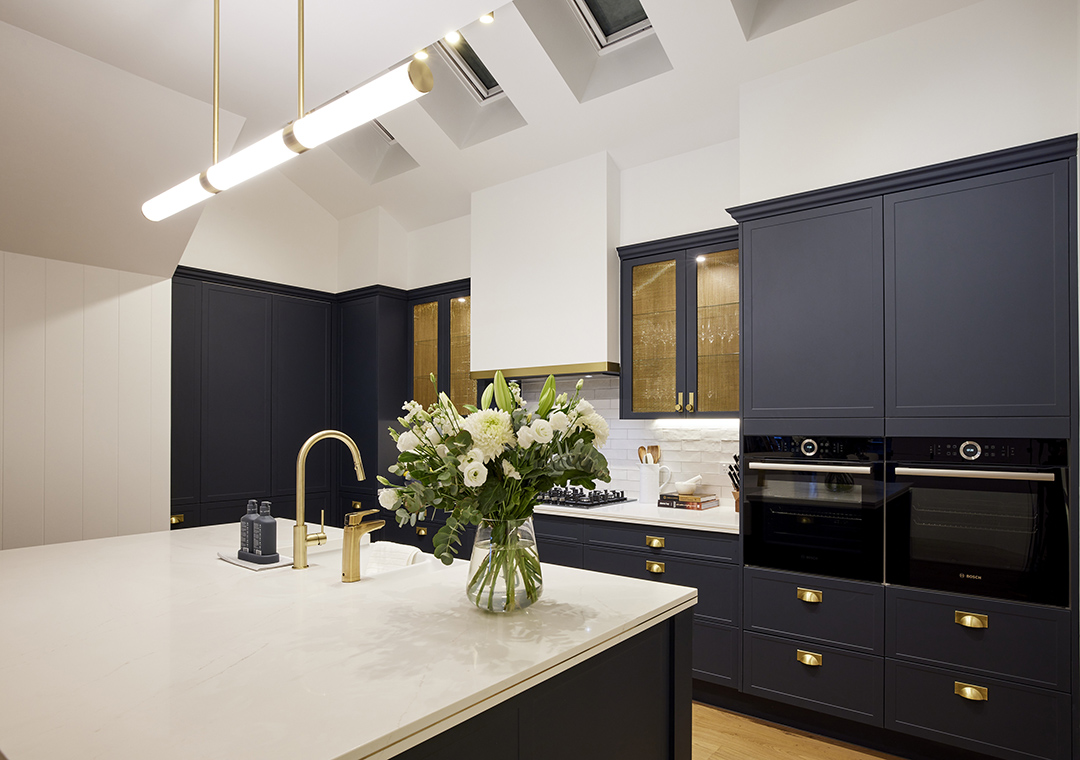

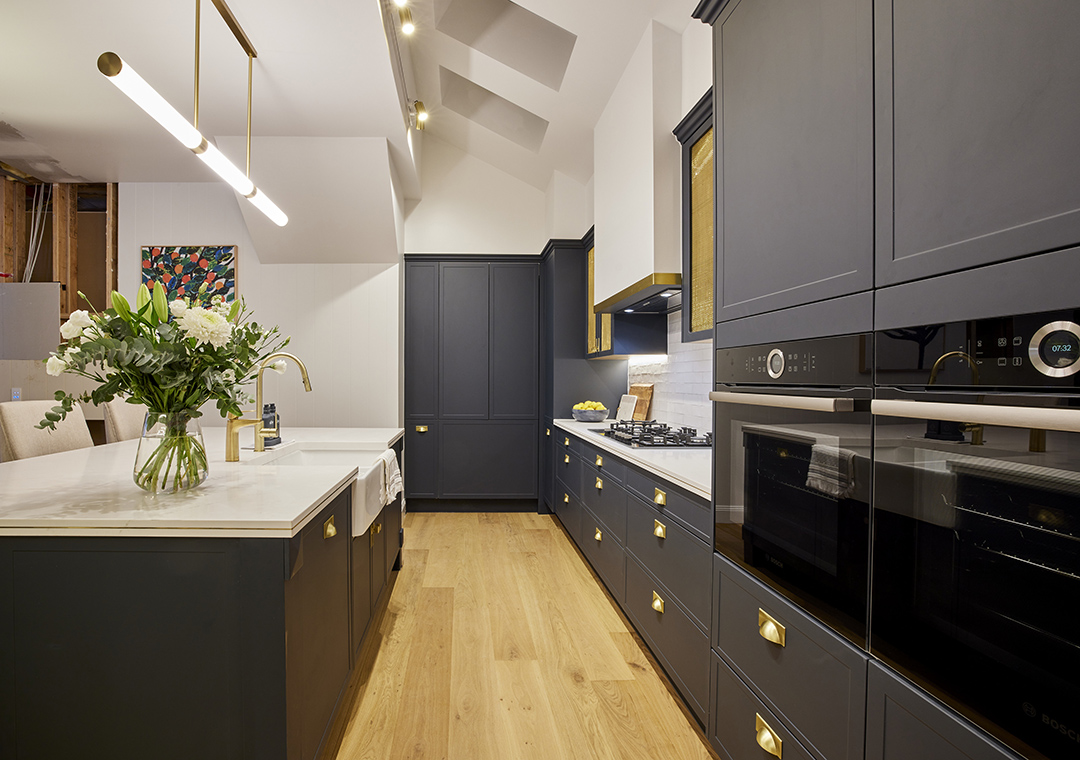

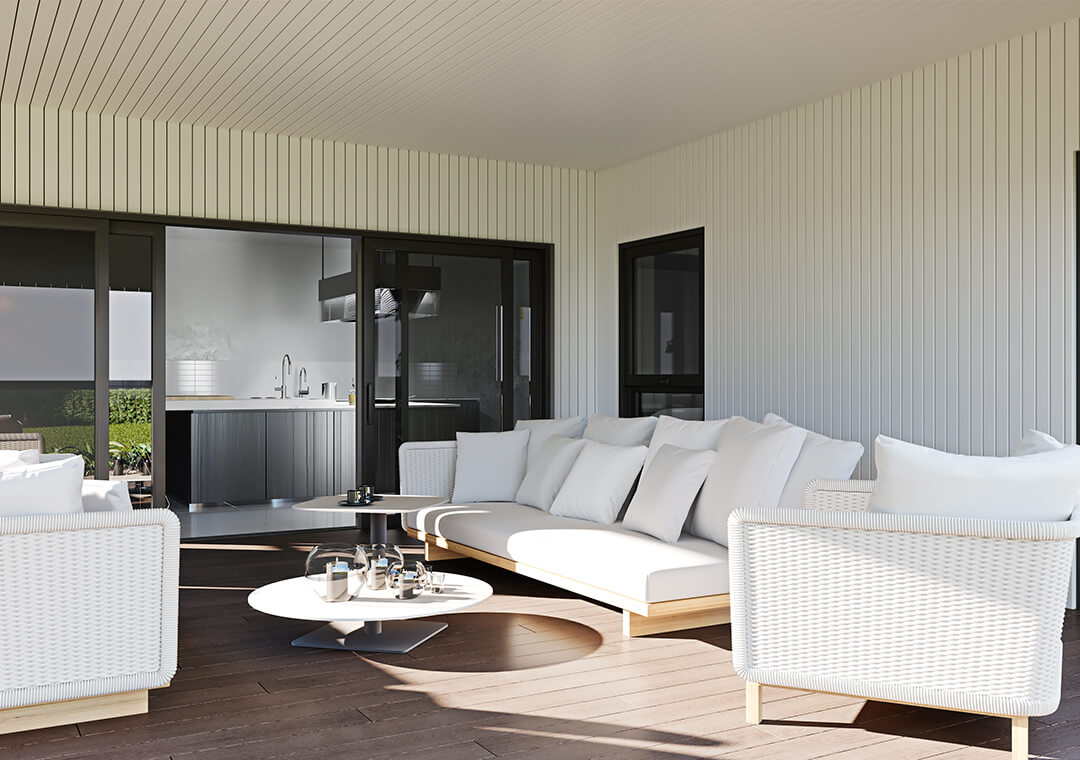

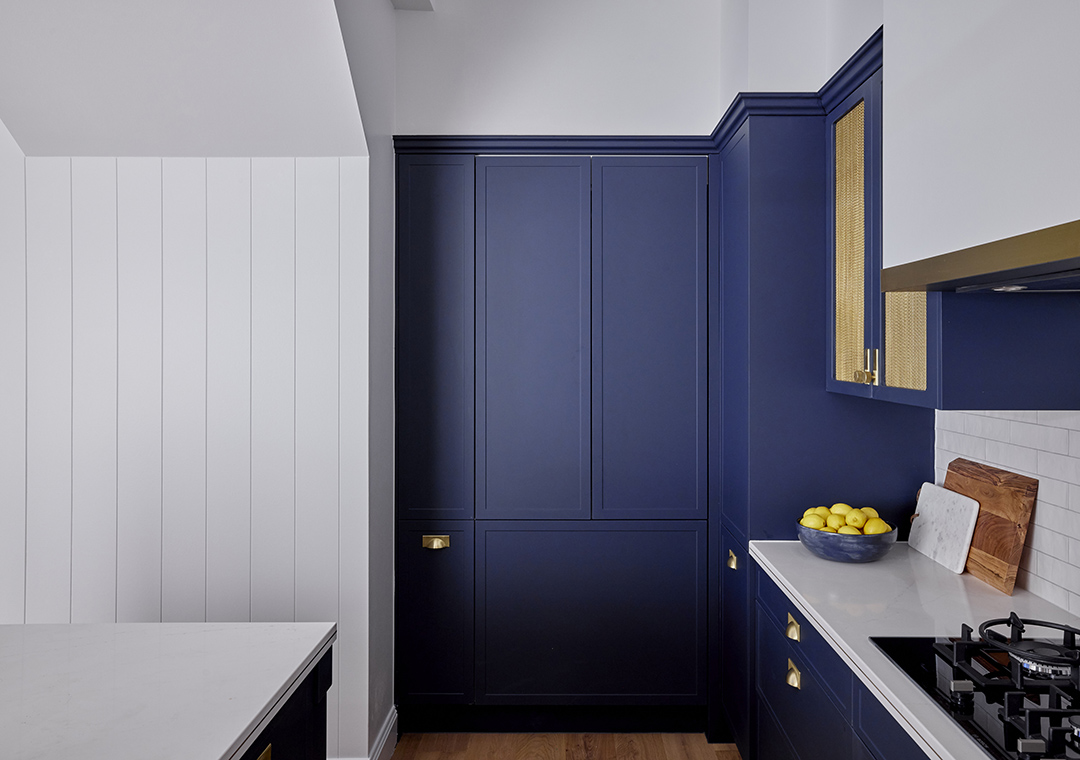

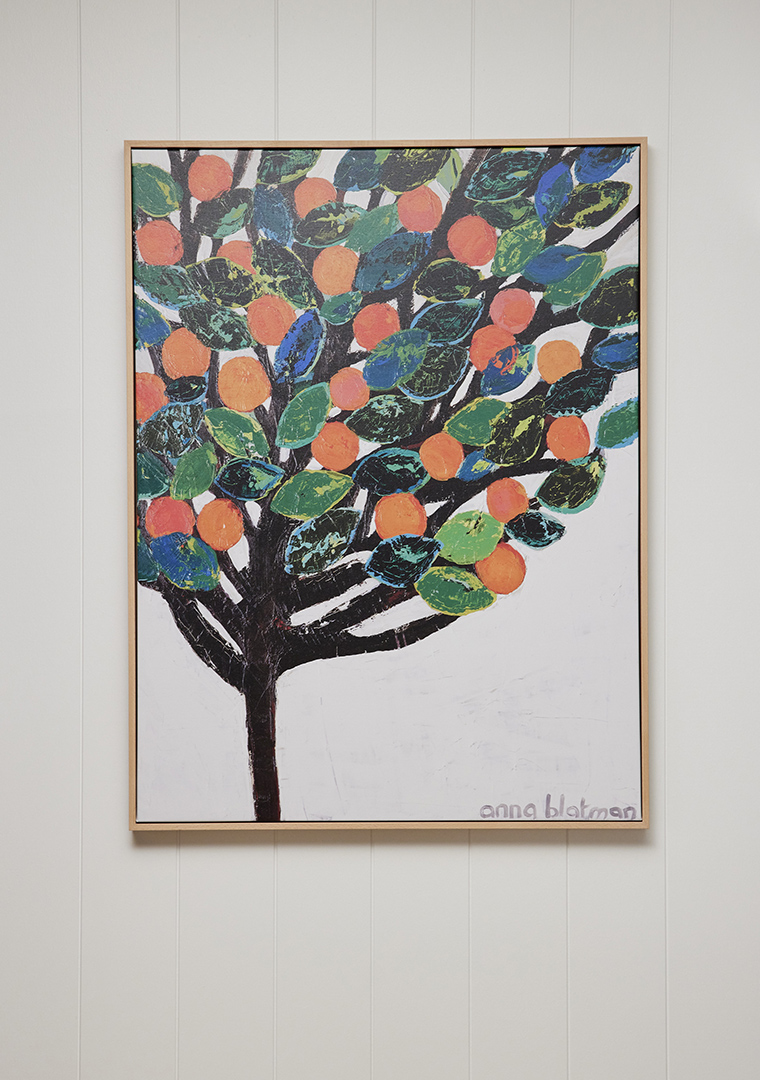

A vertical cladding, Edge has sharp 'V' grooves, which complement both classic and modern home designs. Perfect for pairing with other materials to form a composite look, or as a vertical alternative to traditional weatherboard designs, Edge can be used internally, as well as externally.
The panels provide for speedy construction and the direct fix method saves space because it doesn’t come out from the wall. The ship-lap joint runs along the long edge, allowing for frame movement and avoids joint cracking. It can also be installed on a cavity system.
Check out our video below to see the different looks that Edge Cladding can give. 'What's your Edge?'...
** Only Bond Profile (75mm) samples are available**
Features
- Pre-primed, external, vertical cladding, with sharp grooves
- Allows for the creative pairing with the whole Cemintel range
- Grooves are very sharp, clean and ready to paint
- Speedy construction with a direct fix method that saves space
- Ship-lap joint runs along the long edge, allowing for frame movement and avoiding joint cracking
- Can also be installed on a cavity system
Downloads
Technical Data
APPLICATIONS
Result | |
---|---|
Applications | Façades & Cladding, Internal Linings |
Type of Building Structure | Residential Housing Buildings within the scope of AS4055 |
Wet Areas | No |
PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
---|---|---|---|
Panel Dimensions | 1200mmW x 2450mmL x 9mmD - Bond, Oxford, York, Crown & Ribbon 1200mmW x 2750mmL x 9mmD - Bond, Oxford, York, Crown & Ribbon 1200mmW x 3000mmL x 9mmD - Bond, Oxford, York, Crown & Ribbon |
Width +0 -3 mm Length +0 -3 mm Thickness +0.5 -0 mm |
|
Profile | Shiplap | ||
Perpendicularity/squareness of edges | 2mm/linear meter | ||
Weight (typical) | 13.5kg/m2 | ||
Layout Options | Vertical | ||
Jointing | Concealed |
PANEL - STRENGTH & MOISTURE RELATED PROPERTIES
Physical Property | Result | Relevant Standard |
---|---|---|
Modulus of Rupture (Wet) | > 9 MPa | AS2908.2 |
Modulus of Elasticity (Wet) | 3-5 GPa | AS2908.2 |
Density (Oven Dry) | 1280 kg/m3 | AS2908.2 |
Water Vapor Diffusion | Not Required | Not Required |
Water Tightness (24hrs) | No water droplet | AS2908.2 |
Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
Moisture Content (EMC) | 7 wt% | ASTM C 1186 |
Moisture Movement | 0.05% | ASTM C 1186 |
PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
Test | Result | Relevant Standard |
---|---|---|
Heat Rain | PASSED (25 Cycles) | AS2908.2 |
Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
Warm Water Resistance | PASSED (56 days) | AS2908.2 |
Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL - FINISH CHARACTERISTICS
Characteristic | Result | Relevant Standard |
---|---|---|
Finish | Preprimed | |
Coating Type | Sealer Type: Pigmented Sealer On Face | |
Colour Bodied | No | |
Paint Type | ||
UV Resistance | N/A | N/A |
Formaldehyde Emission Rate | N/A | N/A |
VOC Emission Rate | N/A | N/A |
Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
---|---|---|---|---|
Edge™ Cladding Edge Ribbon | ||||
Edge™ Cladding Bond | ||||
Edge™ Cladding Oxford | ||||
Edge™ Cladding York | ||||
Edge™ Cladding Crown |
PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
Characteristic | Result | Relevant Standard |
---|---|---|
FIRE RESISTANCE | ||
Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12) | |
Fire Hazard Properties | Average Specific Extinction Area <250 | AS 5637.1 |
Classification | Group 1 | AS/NZ 3837 |
THERMAL CONDUCTIVITY | ||
Thermal Conductivity (λ-Factor) | ≈ 0.2535 W/m.K | |
Thermal Expansion Co-efficient | 0.005-0.01mm/mK | N/A |
ACOUSTIC VALUE | ||
Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
Characteristic | Result | Relevant Standard |
---|---|---|
Within Scope of AS4055? | Yes | |
Wind Loading - Residential housing buildings within the scope of AS4055 | N1, N2, N3, N4, N5, N6, C1, C2, C3, C4 | |
Weatherproofing | Suitable for all building classes as set out in the BCA (ie 1&10, 2-9) | N/A |
Cyclonic Conditions | N/A | N/A |
Fire Resistance Limits (FRLs) | Up to 120/120/120 | Refer to Gyprock® The Red Book™ |
Bushfire Construction | BAL 29 (Construction for Bushfire Attack Level 29 for an external wall) | AS 3959-8 |
Acoustic | Acoustic solutions of up to RW/RW+CTR 53/44 (CSR 5174) are detailed | Refer to Gyprock® The Red Book™ |
Thermal | Thermal solutions of up to RT(sum)/RT(win) 2.6/2.9 | Refer to Gyprock® The Red Book™ |
FIXING
Characteristic | |
---|---|
Maximum Span (Stud Spacing) | Up to 600mm |
DIRECT FIX | |
Nail to Timber Frame | Yes |
Screw to Timber Frame | No |
Screw to Steel Frame | Yes |
CAVITY FIX | |
Timber Frame | Yes |
Steel Frame | Yes |
Masonry Frame | No |
EXPOSED FASTENERS | |
Screw | Yes |
Rivet | No |
Nail | Yes |
CONCEALED FASTENERS | |
Clip | No |
Countersunk Screw/Nail | No |
Adhesive, Split Batten, etc. | No |
Hidden by Overlapping Panel | No |
Flush Jointed (Taped) | No |
