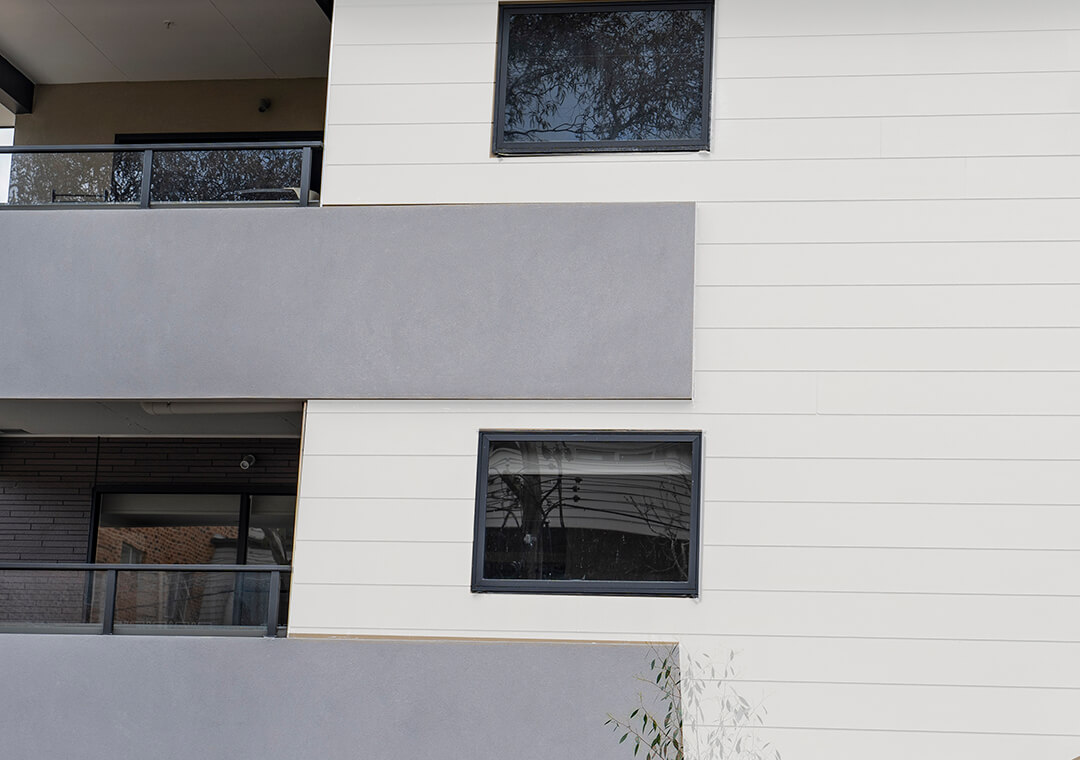

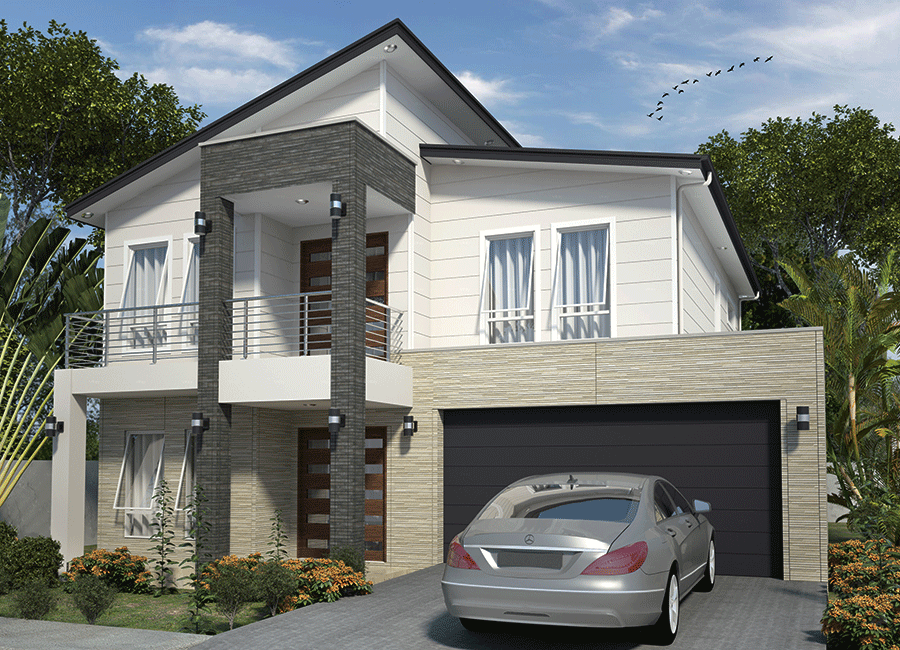

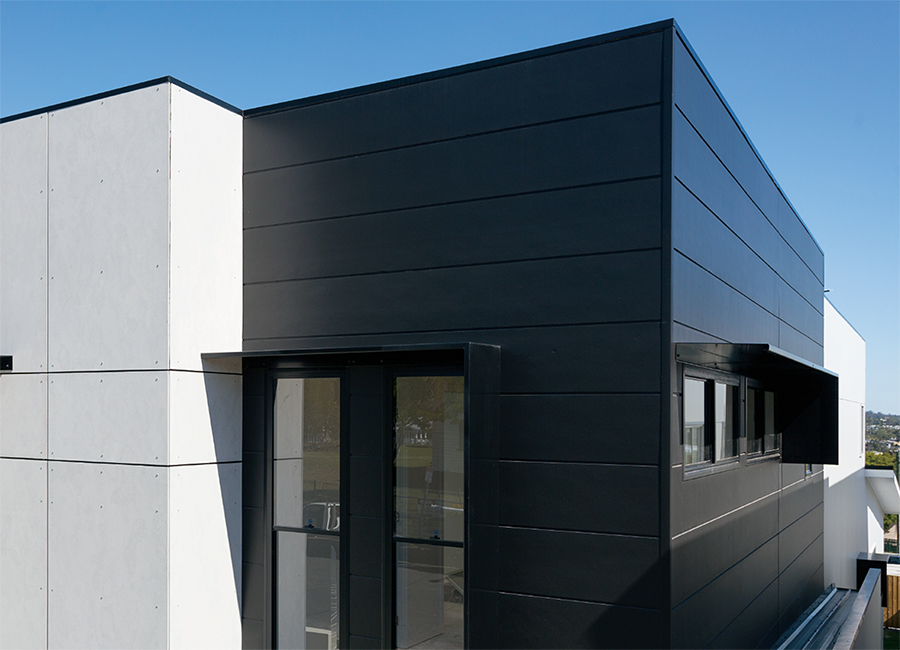

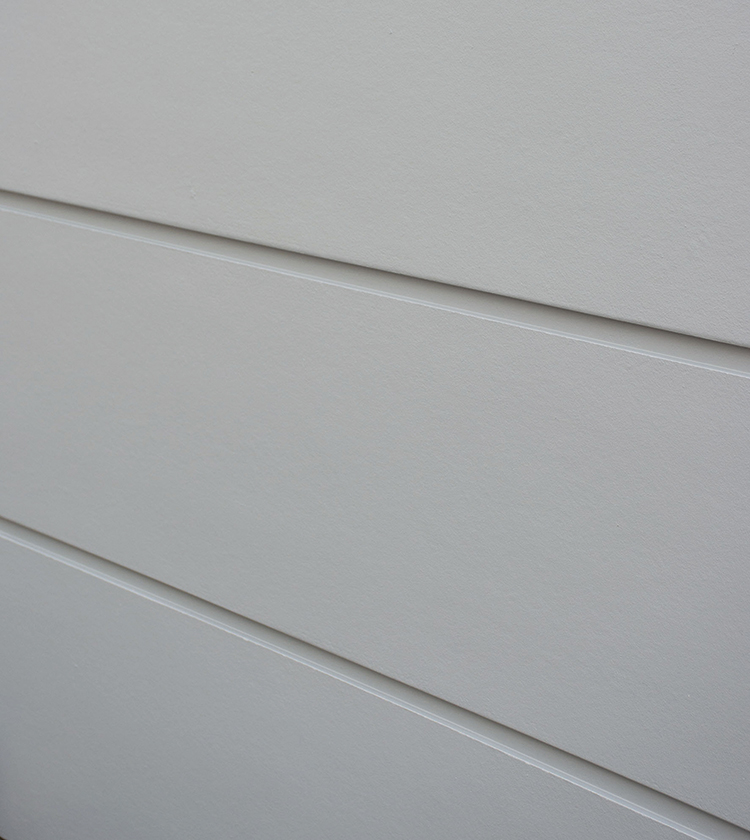

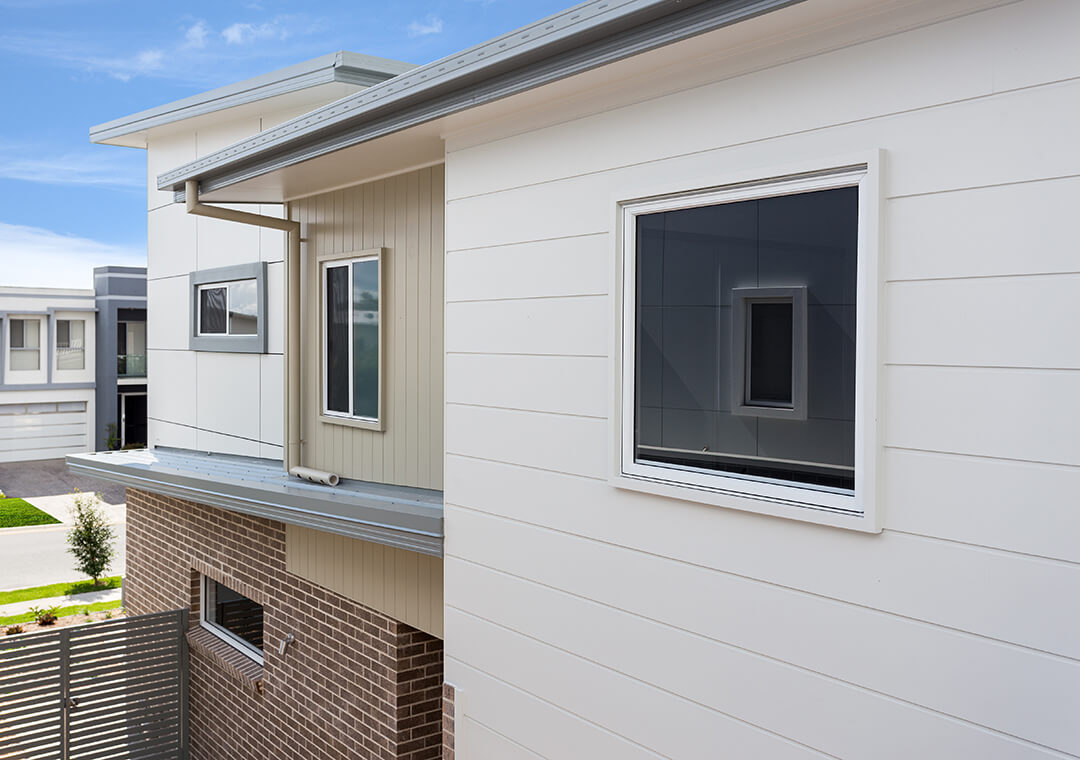

Cemintel Aspect Cladding® displays a distinctive horizontal ship-lapped joint, while providing a classic, attractive façade.
The wider panel and interlocking joint means less fixings than traditional weatherboards and no visible face fixings, providing a clean, modern finish. Cemintel Aspect Cladding® is available with direct or cavity fixing options.
Features
- Displays a distinctive horizontal ship-lapped joint, while providing a classic, attractive façade
- Wider panel and interlocking joint means less fixings than traditional weatherboards
- No visible face fixings provide a clean, modern finish
- Available with direct or cavity fixing options
-
Façades & Cladding
-
Internal Linings
Downloads
Associated files for this Cemintel product are available for download.
Modern Cladding Product Flyer
Aspect Cladding BIM files
ZIP | 865.3KB
Aspect Cladding Installation Guide
PDF | 5.3MB
Cemintel Façades & Cladding Design Guide
PDF | 5.1MB
Aspect Cladding Product Warranty
PDF | 104.9KB
Cemintel Street Style Brochure
PDF | 18.6MB
Fire Performance Guide - Fibre Cement Cladding
PDF | 3.3MB
Cemintel Product Portfolio
PDF | 19.7MB
Rigid Air Barrier Installation Guide
PDF | 4.6MB
Cemintel Fibre Cement Safety Data Sheet
PDF | 466.7KB
Technical Data
APPLICATIONS
| Result | |
|---|---|
| Applications | Façades & Cladding, Internal Linings |
| Type of Building Structure | Residential Housing Buildings within the scope of AS4055 |
| Wet Areas | No |
PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Width | 300mm | + 0.0mm / - 3.0mm | |
| Panel Length | 4200mm | + 0.0mm / - 4.0mm | |
| Panel Thickness | 12mm | + 0.5mm / - 0.0mm | |
| Profile | Shiplap | ||
| Perpendicularity/squareness of edges | 1mm/linear meter | ||
| Weight (typical) | 19kg/m2 | ||
| Layout Options | Horizontal | ||
| Jointing | Concealed |
PANEL - STRENGTH & MOISTURE RELATED PROPERTIES
| Physical Property | Result | Relevant Standard |
|---|---|---|
| Modulus of Rupture (Wet) | > 9 MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 3-5 GPa | AS2908.2 |
| Density (Oven Dry) | 1350 kg/m3 | AS2908.2 |
| Water Vapor Diffusion | Not Required | Not Required |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 wt% | ASTM C 1186 |
| Moisture Movement | 0.062% | ASTM C 1186 |
PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
| Test | Result | Relevant Standard |
|---|---|---|
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL - FINISH CHARACTERISTICS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Finish | Preprimed | |
| Coating Type | Sealer Type: Clear Sealer On Face | |
| Colour Bodied | No | |
| Paint Type | ||
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | N/A | N/A |
| VOC Emission Rate | N/A | N/A |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| Aspect Cladding® | N/A |
PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
| Characteristic | Result | Relevant Standard |
|---|---|---|
| FIRE RESISTANCE | ||
| Combustibility | In accordance with Volume Two of NCC 2022 H3D2(1) [2019: 3.7.1.1], Cemintel Aspect can be used wherever a non-combustible material is required by the code. | |
| Fire Hazard Properties | Group 1 Av Specific Extinction Area <250 | AS 5637.1 |
| Classification | 1 | AS/NZ 3837 |
| THERMAL CONDUCTIVITY | ||
| Thermal Conductivity (λ -Factor) | ≈ 0.2704 W/m.K | |
| Thermal Expansion Co-efficient | 0.005-0.01mm/mK | N/A |
| ACOUSTIC VALUE | ||
| Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Within Scope of AS4055? | Yes | |
| Wind Loading - Residential housing buildings within the scope of AS4055 | N1, N2, N3, N4, N5, N6, C1, C2, C3, C4 | |
| Weatherproofing | Suitable for all building classes as set out in the NCC (ie 1&10, 2-9) | N/A |
| Cyclonic Conditions | N/A | N/A |
| Fire Resistance Limits (FRLs) | Up to 90/90/90 | Refer to Gyprock® The Red Book™ |
| Bushfire Construction | BAL 29 (Construction for Bushfire Attack Level 29 for an external wall) | AS 3959-8 |
| Acoustic | Acoustic solutions of up to RW/RW+CTR 50/42 are detailed | Refer to Gyprock® The Red Book™ |
| Thermal | Thermal solutions of up to RT(sum)/RT(win) 3.4/3.8 are detailed | Refer to Gyprock® The Red Book™ |
FIXING
| Characteristic | |
|---|---|
| Maximum Span (Stud Spacing) | Up to 600mm |
| DIRECT FIX | |
| Nail to Timber Frame | Yes |
| Screw to Timber Frame | No |
| Screw to Steel Frame | Yes |
| INDIRECT FIX | |
| Timber Frame | Yes |
| Steel Frame | No |
| Masonry Frame | No |
| EXPOSED FASTENERS | |
| Screw | No |
| Rivet | No |
| Nail | No |
WARRANTY 15 Years
