Street Style - SimpleLine®

Façades & Cladding, Internal Linings

Home
Products
SimpleLine®

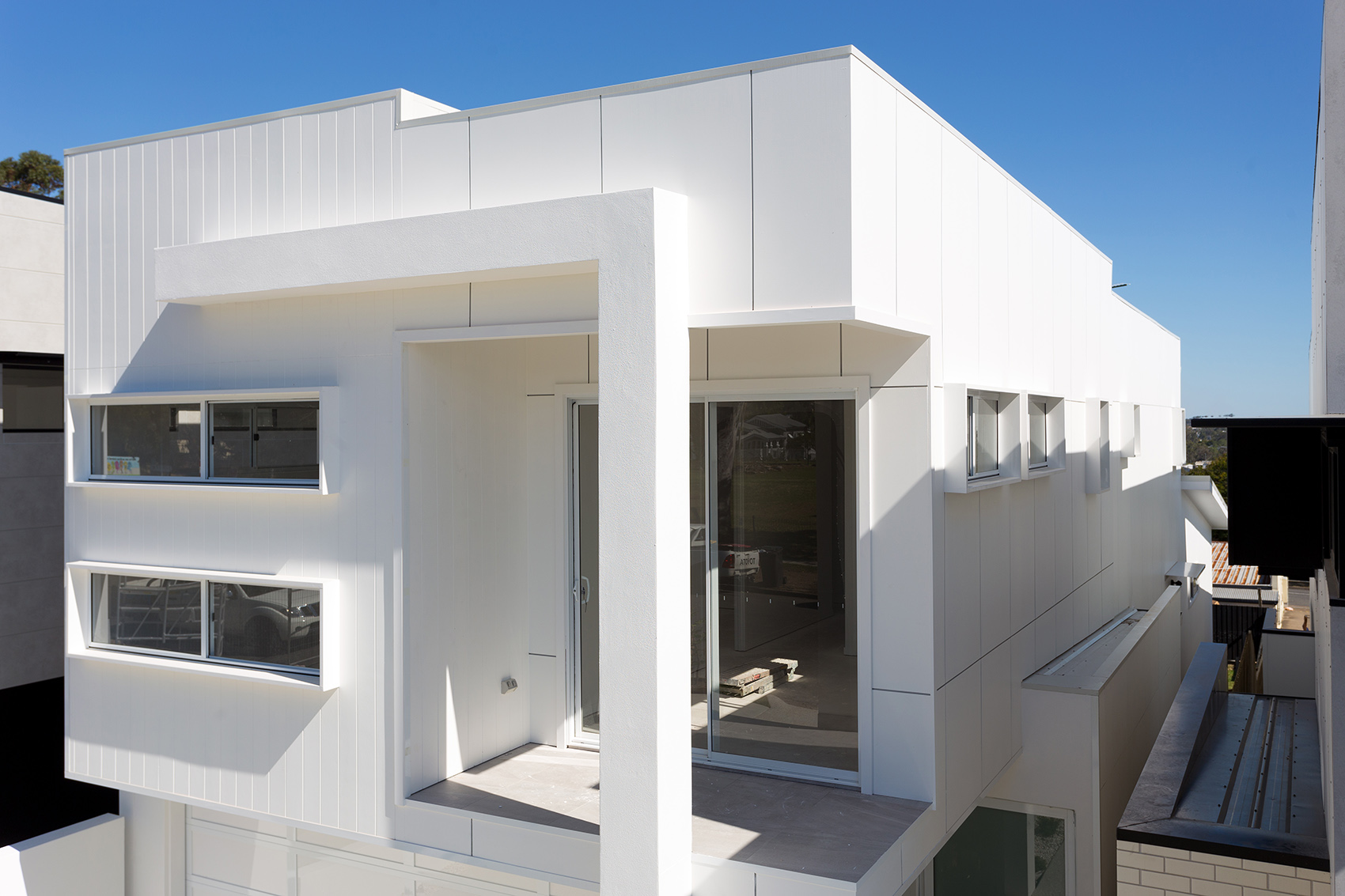

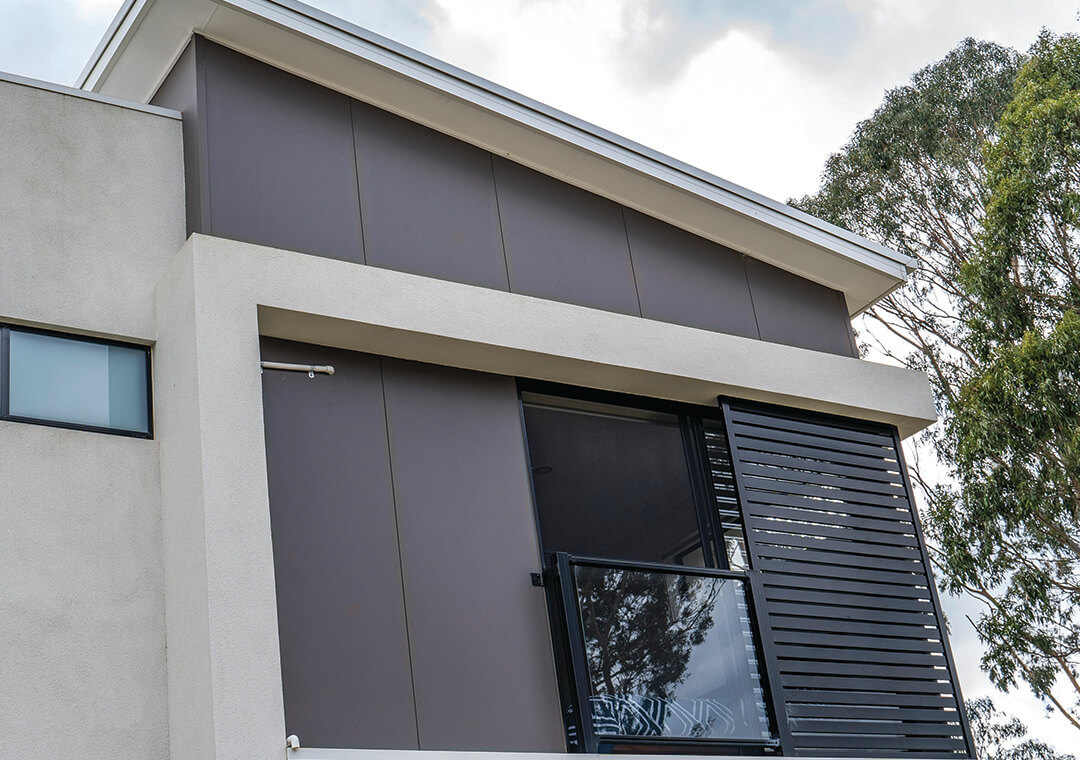

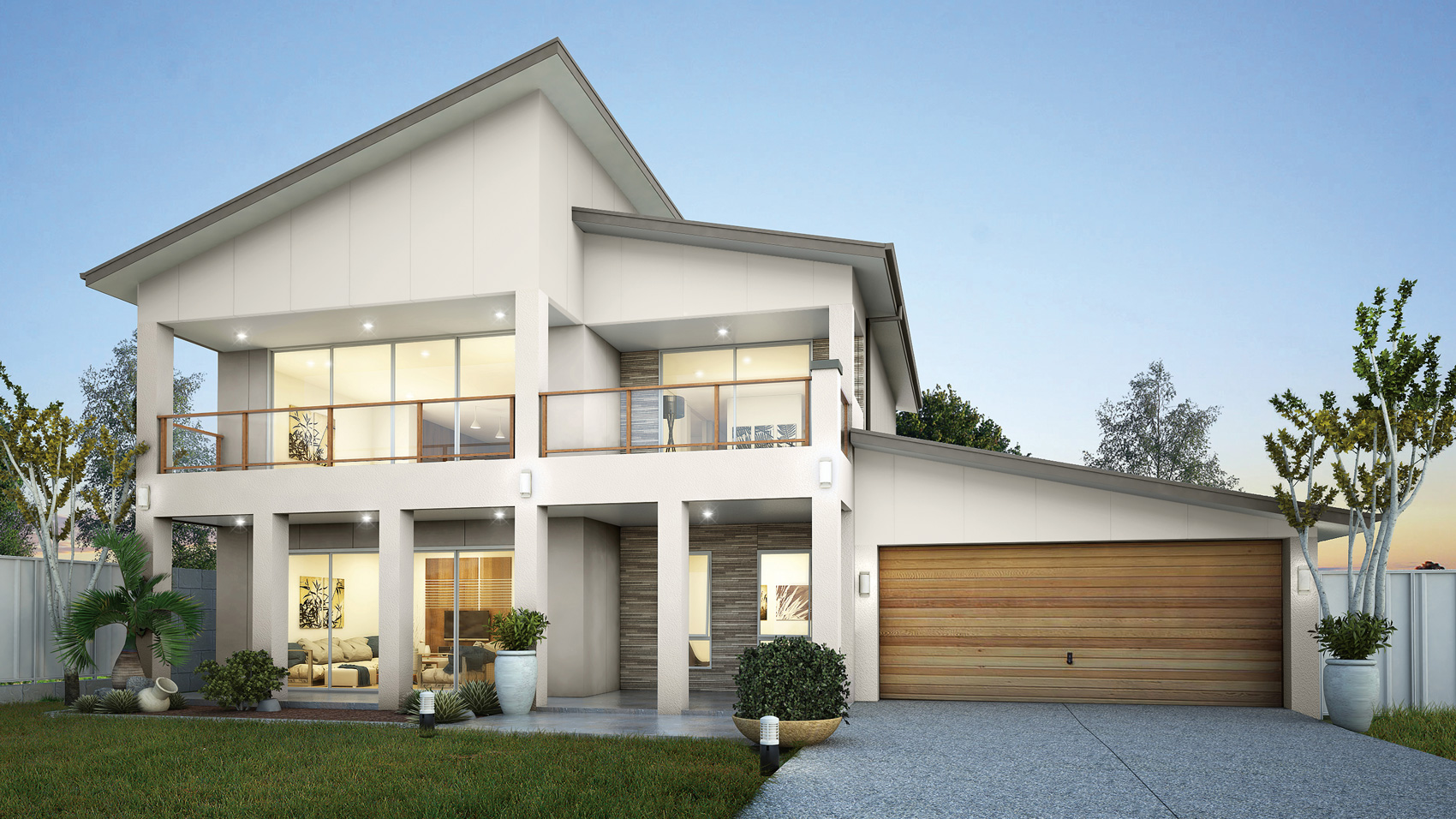

From an aesthetic viewpoint, SimpleLine^® has strong, clean edges that provide for an express panel look without the cost.

A simple blank canvas primed and ready for a final paint finish, these panels have ship-lapped vertical edges that are suitable for gun-nailing for fast installation. There are multiple installation methods to give you choice and flexibility.

Features

Strong, clean edges that provide for an express panel look without the cost
Simple blank canvas, primed and ready for a final paint finish
Ship-lapped vertical edges are suitable for gun-nailing for fast installation
Multiple installation methods give you choice and flexibility

Façades & Cladding
Internal Linings

Downloads

Associated files for this Cemintel product are available for download.

Modern Cladding Product Flyer

PDF | 7.7MB

SimpleLine BIM files

ZIP | 903.5KB

SimpleLine Product Warranty

PDF | 104.8KB

Edge Cladding and Simpleline Installation Guide

PDF | 6.8MB

Cemintel Façades & Cladding Design Guide

PDF | 5.1MB

Cemintel Street Style Brochure

PDF | 18.6MB

Rigid Air Barrier Installation Guide

PDF | 4.6MB

Cemintel Product Portfolio

PDF | 19.7MB

Fire Performance Guide - Fibre Cement Cladding

PDF | 3.3MB

Cemintel Fibre Cement Safety Data Sheet

PDF | 466.7KB

Technical Data

Download

SIMPLELINE SPECIFICATION DETAILS
Manufacturer : CSR Cemintel
Product : Simpleline
Profile : 900mm or 1200mm wide panel with 6mm wide vertical groove at joints
Finish : Factory sealed
Thickness : 8.5mm
Sheet size : 900mm wide x 3000mm long or 1200mm wide x 2400mm or 3000mm long
Installation :
Direct fixed (with or without cavity) with tongue and groove jointing installed strictly in accordance to manufacturers specification as set out in the CSR Cemintel Edge & Simpleline Installation Guide.
>Download Installation Guide

APPLICATIONS

	Result
Applications	Façades & Cladding, Internal Linings
Type of Building Structure	Residential Housing Buildings within the scope of AS4055
Wet Areas	No

PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS

Dimensional/Geometrical Characteristic	Specification	Manufacturing Tolerance
Panel Dimensions	900mmW x 3000mmL x 8.5mmD 1200mmW x 2400mmL x 8.5mmD 1200mmW x 3000mm L x 8.5mmD	Width +0 -1 mm Length +0 -3 mm Thickness +0.3 -0 mm
Profile	Shiplap
Perpendicularity/squareness of edges	1mm/linear meter
Weight (typical)	13.3kg/m2
Layout Options	Vertical
Jointing	Concealed

PANEL - STRENGTH & MOISTURE RELATED PROPERTIES

Physical Property	Result	Relevant Standard
Modulus of Rupture (Wet)	> 9 MPa	AS2908.2
Modulus of Elasticity (Wet)	3-5 GPa	AS2908.2
Density (Oven Dry)	1280 kg/m3	AS2908.2
Water Vapor Diffusion	Not Required	Not Required
Water Tightness (24hrs)	No water droplet	AS2908.2
Water Absorption (Saturated – 48hrs)	30 wt%	ASTM C 1186
Moisture Content (EMC)	7 wt%	ASTM C 1186
Moisture Movement	0.05%	ASTM C 1186

PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS

Test	Result	Relevant Standard
Heat Rain	PASSED (25 Cycles)	AS2908.2
Freeze Thaw	PASSED (50 Cycles)	AS2908.2
Warm Water Resistance	PASSED (56 days)	AS2908.2
Soak Dry	PASSED (25 Cycles)	AS2908.2

PANEL - FINISH CHARACTERISTICS

Characteristic	Result	Relevant Standard
Finish	Preprimed
Coating Type	Sealer Type: Pigmented Sealer On Face
Colour Bodied	No
Paint Type
UV Resistance	N/A	N/A
Formaldehyde Emission Rate	N/A	N/A
VOC Emission Rate	N/A	N/A

Spectral Reflectivity Values	Solar Reflectance %	Solar Absorption %	Basix Colour	Relevant Standard
SimpleLine®				N/A

PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES

Characteristic	Result	Relevant Standard
FIRE RESISTANCE
Combustibility	Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12)
Fire Hazard Properties	Average Specific Extinction Area <250	AS 5637.1
Classification	Group 1	AS/NZ 3837
Surface Burning Characteristics		AS1530.3
THERMAL CONDUCTIVITY
Thermal Conductivity (λ-Factor)	≈ 0.2835 W/m.K
Thermal Expansion Co-efficient	0.005-0.01mm/mK	N/A
ACOUSTIC VALUE
Sound reduction (depends on construction)	N/A	N/A

SYSTEM SOLUTIONS

Characteristic	Result	Relevant Standard
Within Scope of AS4055?	Yes
Wind Loading - Residential housing buildings within the scope of AS4055	N1, N2, N3, N4, N5, N6, C1, C2, C3, C4
Weatherproofing	Suitable for all building classes as set out in the BCA (ie 1&10,2-9)	N/A
Cyclonic Conditions	To AS 4055 only	AS 1170.2
Fire Resistance Limits (FRLs)	Up to 60/60/60 90/90/90	Refer to Gyprock® The Red Book™
Bushfire Construction	BAL 29 (Construction for Bushfire Attack Level 29 for an external wall)	AS 3959-8
Acoustic	Acoustic solutions of up to RW/RW+CTR 49/39 are detailed	Refer to Gyprock® The Red Book™
Thermal	Thermal solutions of up to RT(sum)/RT(win) 3.4/3.8	Refer to Gyprock® The Red Book™

FIXING

Characteristic
Maximum Span (Stud Spacing)	Up to 600mm
DIRECT FIX
Nail to Timber Frame	Yes
Screw to Timber Frame	No
Screw to Steel Frame	Yes
CAVITY FIX
Timber Frame	Yes
Steel Frame	Yes
Masonry Frame	No
EXPOSED FASTENERS
Screw	Yes
Rivet	No
Nail	Yes
CONCEALED FASTENERS
Clip	No
Countersunk Screw/Nail	No
Adhesive, Split Batten, etc.	No
Hidden by Overlapping Panel	No
Flush Jointed (Taped)	No

WARRANTY 10 Years
