A modern take on the timeless weatherboard. Simply put, Balmoral is a very stylish product.
With strong, deep shadow lines, these pre-primed weatherboards enhance both traditional and contemporary residential design, allowing you to create the perfect home. A 16mm thick, tongue and groove profile provides sharp lines with a distinct shadow. Balmoral is pre-primed and ready to paint, has a concealed fixing system and, like all Cemintel weatherboards, low maintenance, especially when compared to natural timber boards.
Balmoral is available in 150mm and 180mm widths*.

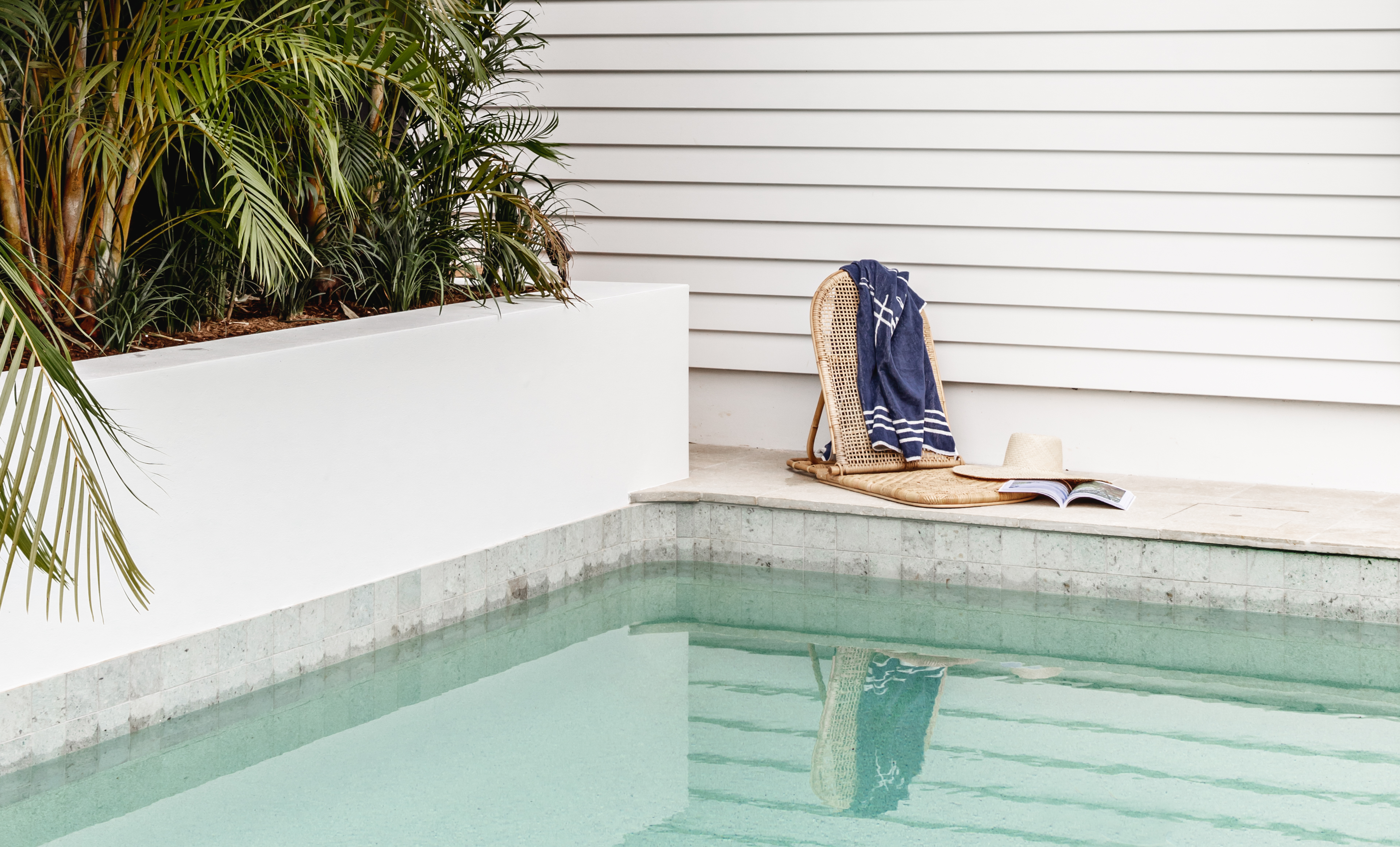

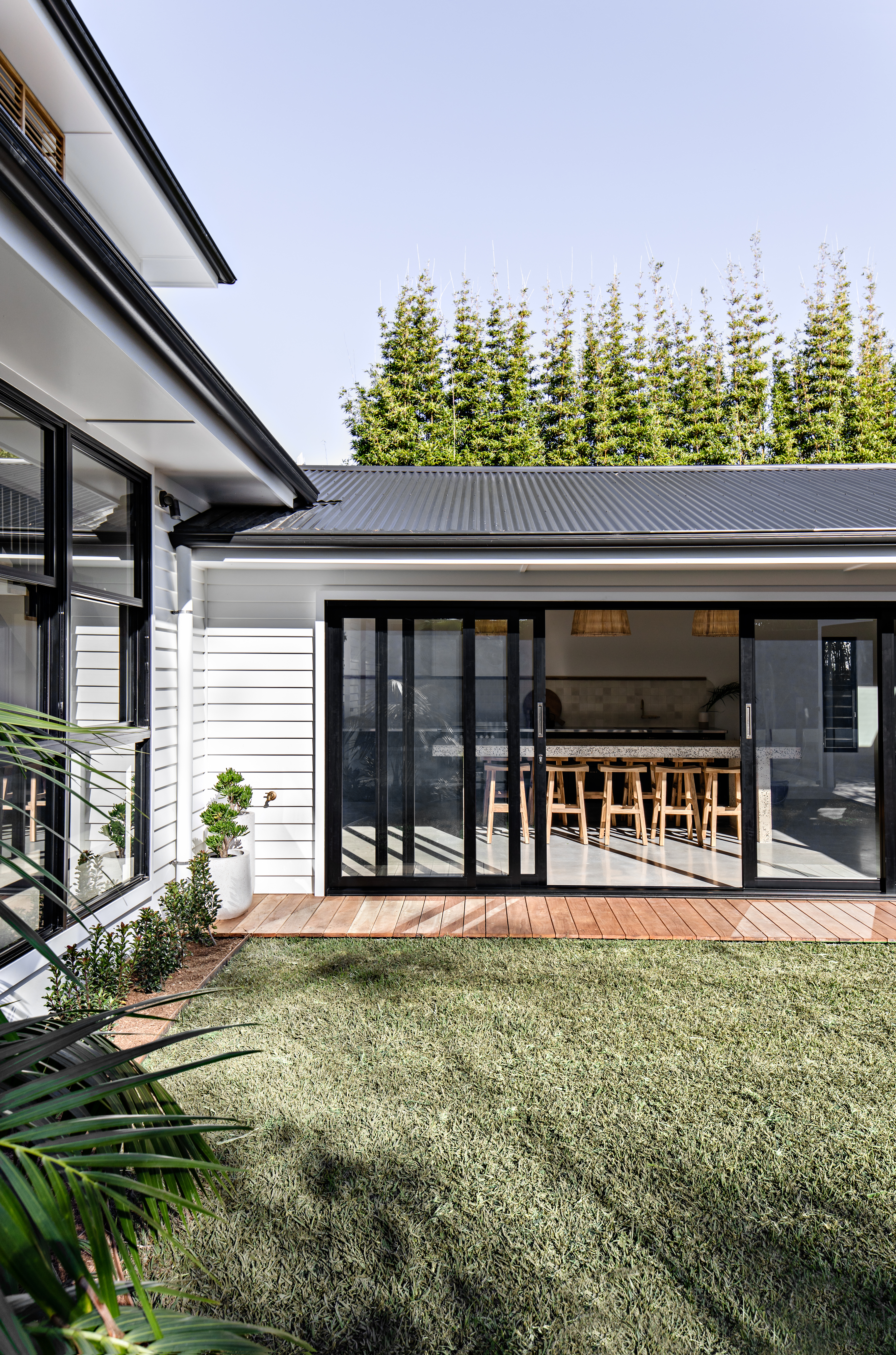

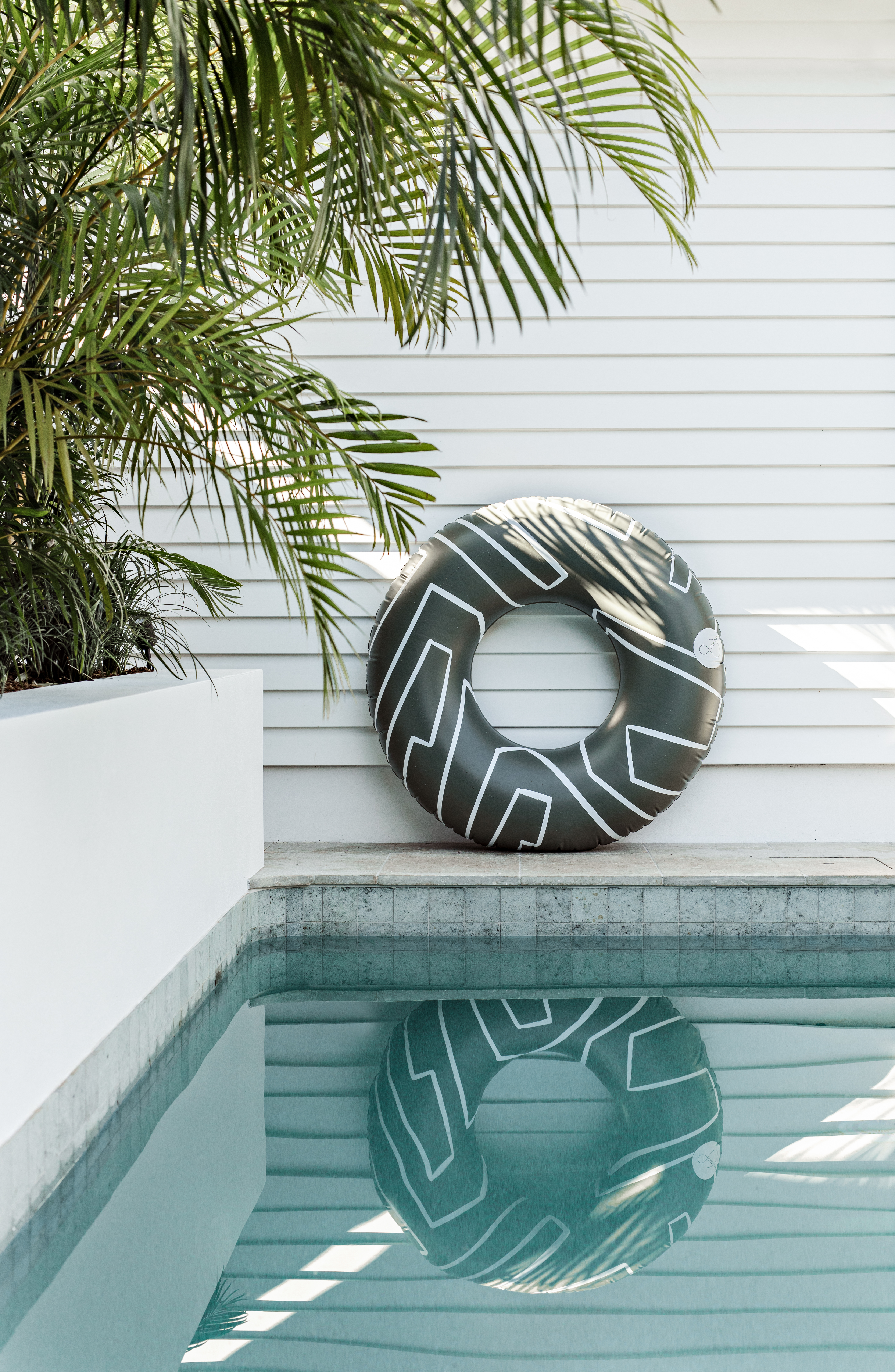

Click on the video below to see how Balmoral
helped bring 'The Pause' to life ...
* Only 180mm Profile samples are available.
Façades & Cladding
BALMORAL SPECIFICATION DETAILS
Manufacturer : CSR Cemintel
Product : Weatherboard
Profile : Balmoral 150mm or 180mm wide
Finish : Factory preprimed
Thickness : 16mm
Sheet size : 4200mm lengths
Installation :
Direct fixed (with or without cavity) with tongue and groove jointing installed strictly in accordance to manufacturers specification as set out in the CSR Cemintel Balmoral Weatherboard Design & Installation Guide
>Download Installation Guide
| Result | |
|---|---|
| Applications | Façades & Cladding |
| Type of Building Structure | Residential Housing Buildings within the scope of AS4055 |
| Wet Areas | No |
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Width | 150mm & 180mm | +1, -0 mm | |
| Panel Length | 4200mm | +0, -2 mm | |
| Panel Thickness | 16mm | +0.5, -0 mm | |
| Profile | Arrised Edge | ||
| Perpendicularity/squareness of edges | 2mm/linear metre | ||
| Weight (typical) | 3.2kg/linear metre - 150 mm 3.8 kg/linear metre - 180mm |
||
| Layout Options | Horizontal | ||
| Jointing | Shiplap |
| Physical Property | Result | Relevant Standard |
|---|---|---|
| Modulus of Rupture (Wet) | > 9 MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 1.5-2.0 GPa | AS2908.2 |
| Density (Oven Dry) | 1200 kg/m3 | AS2908.2 |
| Water Vapor Diffusion | Not Required | Not Required |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 wt% | ASTM C 1186 |
| Moisture Movement (30-90% Humidity) | 0.062% | ASTM C 1186 |
| Test | Result | Relevant Standard |
|---|---|---|
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Finish | Preprimed | N/A |
| Coating Type | N/A | N/A |
| Colour Bodied | No | N/A |
| Paint Type | N/A | N/A |
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | N/A | N/A |
| VOC Emission Rate | N/A | N/A |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| Balmoral Weatherboards Balmoral 150mm | ||||
| Balmoral Weatherboards Balmoral 180mm |
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Fire Resistance | ||
| Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the BCA Vol 1 Clause C1.9 | |
| Fire Hazard Properties | N/A | |
| Classification | ||
| Surface Burning Characteristics | ||
| Thermal Resistance | 0.0720 m2 K/W | ASTM C518-10 |
| Thermal Conductivity ( λ-Factor) | 0.2290 W/m.K | ASTM C518-10 |
| Thermal Expansion Co-efficient | N/A | N/A |
| ACOUSTIC VALUE | N/A | N/A |
| Sound reduction (depends on construction) | N/A | N/A |
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Within Scope of AS4055? | Yes | |
| Wind Loading - Residential housing buildings within the scope of AS4055 | N1, N2, N3, N4, N5, C1, C2, C3 | |
| Weatherproofing | Serviceability wind loads up to 1.19kPa | BCA Fv1.1 |
| Cyclonic Conditions | N/A | AS 4055 |
| Fire Resistance Limits (FRLs) | Refer to The Red Book™ 1 - Design Guide | AS 1530.4 |
| Bushfire Construction | BAL 40 (Construction for Bushfire Attack Level 40 for an external wall) | AS 3959-8 |
| Acoustic | Refer to The Red Book™ 1 - Design Guide | AS/NZS ISO 717 |
| Thermal | Refer to The Red Book™ 1 - Design Guide | N/A |
| Characteristic | |
|---|---|
| Maximum Span (Stud Spacing) | Up to 600mm |
| DIRECT FIX | |
| Nail to Timber Frame | Yes |
| Screw to Timber Frame | No |
| Screw to Steel Frame | Yes |
| CAVITY FIX | |
| Timber Frame | Yes- nail to timber through battens |
| Steel Frame | Yes- screw to steel frame through battens |
| Masonry Frame | No |
| EXPOSED FASTENERS | |
| Screw | No |
| Rivet | No |
| Nail | No |
| CONCEALED FASTENERS | |
| Clip | No |
| Countersunk Screw/Nail | No |
| Adhesive, Split Batten, etc. | No |
| Hidden by Overlapping Panel | Yes |
| Flush Jointed (Taped) | No |
