Cemintel Constructafloor® Internal flooring is a high strength, durable fibre cement structural flooring product. It can be fixed directly to structural framing to form the interior substrate for both wet area and non-wet area applications.

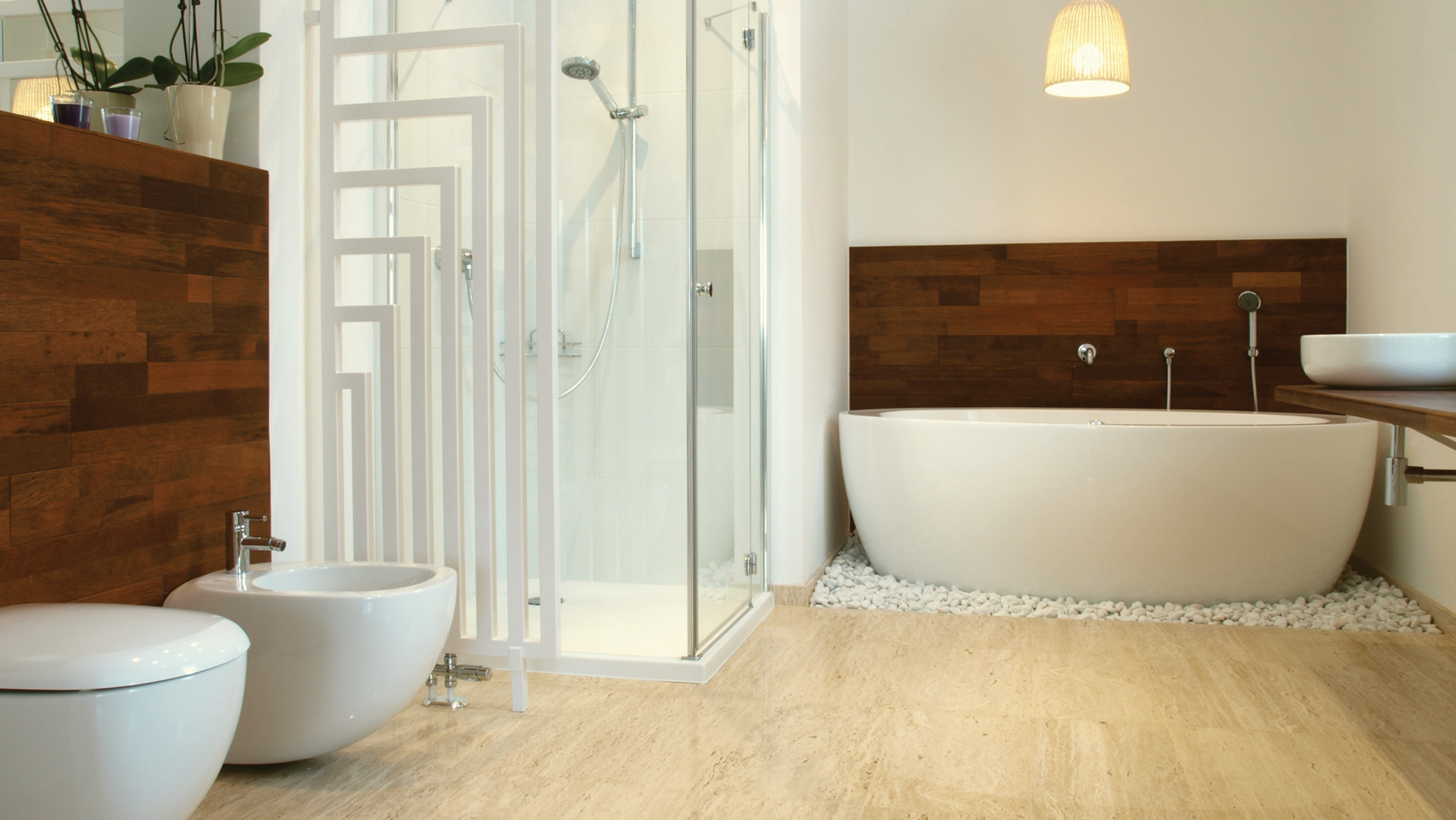

The substrate is resistant to water when paired with a suitable waterproof membrane system, offering a waterproof flooring solution for wet areas such as bathrooms, ensuites and laundries. It can then be covered with your selection of tiles or decorative finishes.
In non-wet areas applications, Constructafloor Internal flooring may be finished with carpet, direct fixed tiles or vinyl sheet in areas that are not required to be waterproof. Constructafloor Internal offers proven, reliable and cost-effective solutions to all internal residential wet areas and other tiled areas.
Features
- Tough durable substrate for wet areas
- Suitable for all tiled floor areas
- Immune to permanent water damage
- Will not rot, warp or burn
- Immune to termite attack
- Ideal for upper storey construction
- Lightweight and economical building material
- Simple and quick to install using screw or gun-nail fixings
- Available in a range of sheet sizes to reduce waste
-
Flooring & Decking
Downloads
Associated files for this Cemintel product are available for download.
Flooring and Decking Product Flyer
Constructafloor Internal BIM files
ZIP | 846.6KB
Constructafloor Internal Product Warranty
PDF | 105.1KB
Constructafloor Internal Installation Guide
PDF | 2.6MB
Constructafloor Waterproof Certificate - ARDEX
PDF | 140.7KB
Constructafloor Waterproof Certificate - Bostik
PDF | 116.5KB
Constructafloor Waterproof Certificate - Parchem
PDF | 235.1KB
Cemintel Product Portfolio
PDF | 19.7MB
Fire Performance Guide - Fibre Cement Cladding
PDF | 3.3MB
Cemintel Fibre Cement Safety Data Sheet
PDF | 466.7KB
Technical Data
APPLICATIONS
| Result | |
|---|---|
| Applications | Flooring & Decking |
| Type of Building Structure | Residential housing, commercial & other (buildings limited loadings - refer to Design & Installation Guide) |
| Wet Areas | Yes |
PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Dimensions | 600mm W x 2700mm L x19mm D 900mm W x 1800mm L x19mm D (Non Standard Sizing) 600mm W x2400mm L x22mm D |
Width +0-3 mm Length +0-3 mm Thickness +0.3-0 mm |
|
| Profile | Tongue & Groove | ||
| Perpendicularity/squareness of edges | 2mm/linear metre | ||
| Weight (typical) | 25.5kg/m2 (Constructafloor 19mm) 28.6kg/m2 (Constructafloor 22mm) |
||
| Layout Options | N/A | ||
| Jointing | Concealed |
PANEL - STRENGTH & MOISTURE RELATED PROPERTIES
| Physical Property | Result | Relevant Standard |
|---|---|---|
| Modulus of Rupture (Wet) | 8 MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 1.5-2.5GPa | NA |
| Density (Oven Dry) | 1220 kg/m3 | AS2908.2 |
| Water Vapor Di ffusion | N/A | N/A |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 Wt % | ASTM C 1186 |
| Moisture Movement (30-90% Humidity) | 0.062% | ASTM C 1186 |
PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
| Test | Result | Relevant Standard |
|---|---|---|
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL - FINISH CHARACTERISTICS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Finish | Preprimed | |
| Coating Type | Sealer: Polyurethane | |
| Colour Bodied | No | |
| Paint Type | ||
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | N/A | N/A |
| VOC Emission Rate | N/A | N/A |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| Constructafloor® Internal | N/A |
PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
| Characteristic | Result | Relevant Standard |
|---|---|---|
| FIRE RESISTANCE | ||
| Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2019 BCA Vol 1 Clause C1.9 | N/A |
| Fire Hazard Properties | Group 1 Av Specific Extinction Area <250 | AS 5637.1 |
| Classification | N/A | N/A |
| THERMAL CONDUCTIVITY | ||
| Thermal Conductivity ( λ-Factor) | ≈ 0.229 W/m.K. | |
| Thermal Expansion Co-efficient | N/A | N/A |
| ACOUSTIC VALUE | N/A | N/A |
| Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Within Scope of AS4055? | N/A | N/A |
| Wind Loading - Residential housing buildings within the scope of AS4055 | N/A | N/A |
| Weatherproofing | N/A | N/A |
| Cyclonic Conditions | N/A | N/A |
| Fire Resistance Limits (FRLs) | N/A | N/A |
| Bushfire Construction | N/A | N/A |
| Acoustic | N/A | N/A |
| Thermal | N/A | N/A |
FIXING
| Characteristic | |
|---|---|
| Maximum Span (Stud Spacing) | Up to 450mm (Constructafloor 19mm), up to 600mm (Constructafloor 22mm) |
| Nail to Timber Frame | Yes |
| Screw to Timber Frame | Yes |
| Screw to Steel Frame | Yes |
| CAVITY FIX | |
| Timber Frame | N/A |
| Steel Frame | N/A |
| Masonry Frame | N/A |
| EXPOSED FASTENERS | |
| Screw | N/A |
| Rivet | N/A |
| Nail | N/A |
| CONCEALED FASTENERS | |
| Clip | N/A |
| Countersunk Screw/Nail | N/A |
| Adhesive, Split Batten, etc. | N/A |
| Hidden by Overlapping Panel | N/A |
| Flush Jointed (Taped) | N/A |
WARRANTY 10 Years
